Sheet Metal Container With Opening Bottom (Akmk-3500)

Sheet Metal Container With Opening Bottom (Akmk-3500)

The container designed to stack and transport broken, molded, or loose pieces (scraps) resulting from the processing of marble and similar other stone products, scrap iron, scrap plastic, scrap glass, and various materials, opens from the bottom with hinged lids for easy dumping of the material and can be easily closed after the material is dumped due to the springs attached to these lids.

Our container has a balanced center of gravity for smooth lifting and carrying. It has a sturdy hook passing plate for crane systems to lift, and when the crane hook is attached to this part, the container can be lifted smoothly and safely for transportation. For forklift systems to lift, forklift blades can be passed through the support arm attached to the container for safe and smooth transportation.

To empty the container, the operator only needs to pull the handle holding the bottom lids of the trash container in the air.

Our container is painted with standard machine paint, but if a much longer lifespan is desired, galvanizing can be additionally applied.

Technical Specifications:
Manufactured from st52 sheet metal welded with 2 and 3 mm thickness.
The frame for supporting the hopper is made of woven structure from 40*40*2 mm square profile.
80 UPN and 160 IPN are used to attach to the container for forklifts to lift.
A hook passing plate made of 20 mm thick st52 sheet metal is welded onto the container for cranes to lift.
- The product is offered painted with standard machine paint or electro-galvanized.

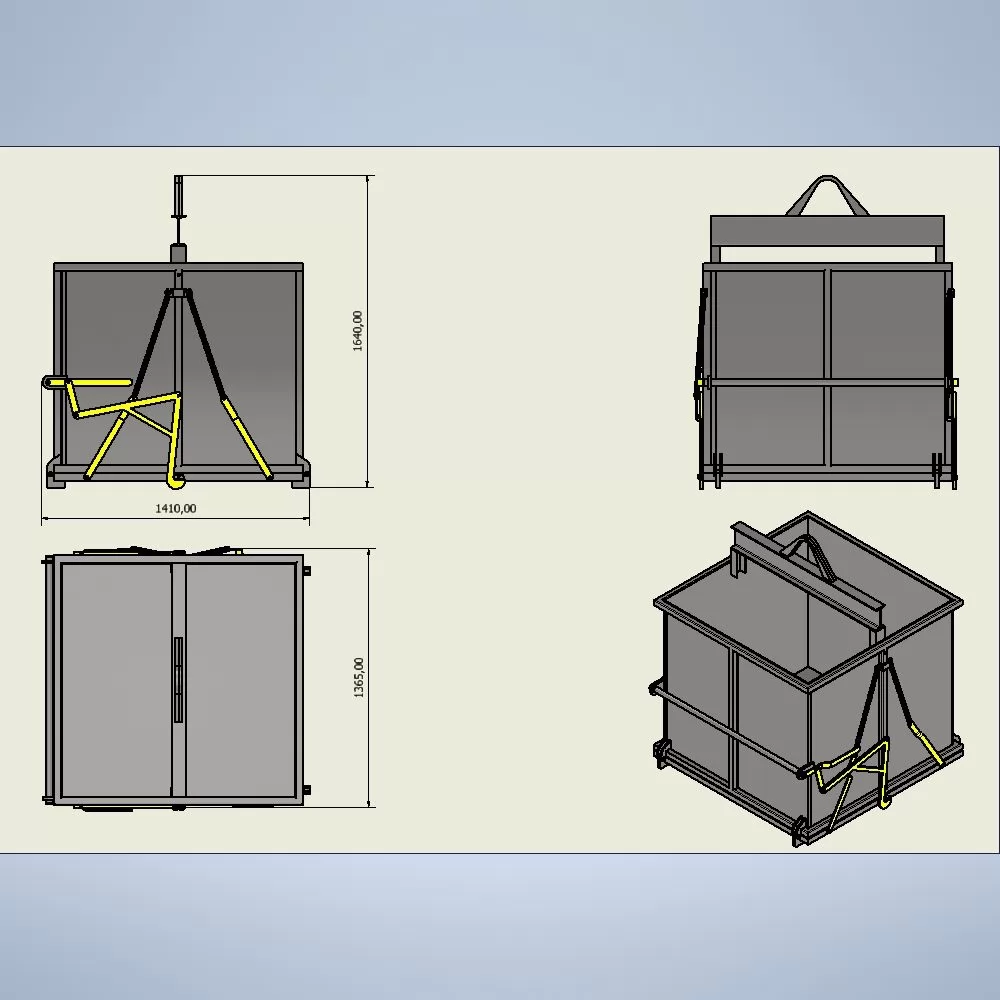

TECHNICAL DIMENSIONS
WIDTH: 1310 MM
LENGTH: 1410 MM
HEIGHT: 1640 MM
WEIGHT: 300 KG


Sheet Metal Container With Opening Bottom (Akmk-3500)

The container designed to stack and transport broken, molded, or loose pieces (scraps) resulting from the processing of marble and similar other stone products, scrap iron, scrap plastic, scrap glass, and various materials, opens from the bottom with hinged lids for easy dumping of the material and can be easily closed after the material is dumped due to the springs attached to these lids.

Our container has a balanced center of gravity for smooth lifting and carrying. It has a sturdy hook passing plate for crane systems to lift, and when the crane hook is attached to this part, the container can be lifted smoothly and safely for transportation. For forklift systems to lift, forklift blades can be passed through the support arm attached to the container for safe and smooth transportation.

To empty the container, the operator only needs to pull the handle holding the bottom lids of the trash container in the air.

Our container is painted with standard machine paint, but if a much longer lifespan is desired, galvanizing can be additionally applied.

Technical Specifications:
Manufactured from st52 sheet metal welded with 2 and 3 mm thickness.
The frame for supporting the hopper is made of woven structure from 40*40*2 mm square profile.
80 UPN and 160 IPN are used to attach to the container for forklifts to lift.
A hook passing plate made of 20 mm thick st52 sheet metal is welded onto the container for cranes to lift.
- The product is offered painted with standard machine paint or electro-galvanized.

TECHNICAL DIMENSIONS
WIDTH: 1310 MM
LENGTH: 1410 MM
HEIGHT: 1640 MM
WEIGHT: 300 KG
